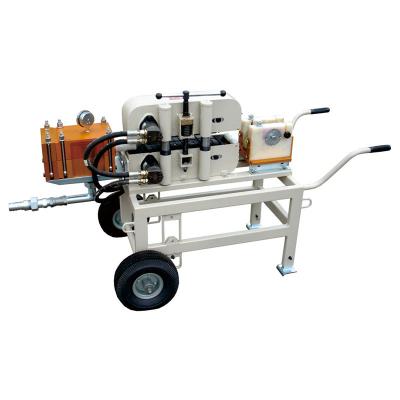

Cable Blower Set

Apply to long-distance communications cable construction .generally the blow length achieve 1000～2000m .

whole set is composed of cable blower set ,hydraulic pump station .airproof piston ,cable seal ring ,plastic seal ring , air compressor

which provide compress air need to purchase additional .










• Essential technical parameter

• Maximum transportation force (n):700(consecutive adjustable )

• Transportation speed (m/min):8-80 (consecutive adjustable )

• .applicable cable diameter (mm): Φ10～24.3

• applicable silicon core pipe (out diameter /inner diameter) (mm):Φ26/Φ32, Φ28/Φ34, Φ33/Φ40. Φ38/Φ46. Φ42/Φ50.

• dimension (mm):1390×700×850

• weight (kg):125

• air compressor require :air delivery capacity :upwards of 10㎡ /min . air pressure: upwards 1Mpa .

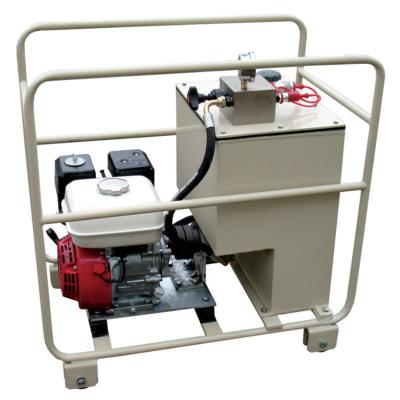

• Pump station essential technical parameter

• maximum pressure (Mpa ):15

• hydraulic flux(l/min ):10

• gasoline (hp/rpm ):6/1800

• length of tube (m):5

•


  weight (kg):87.5










Configuration

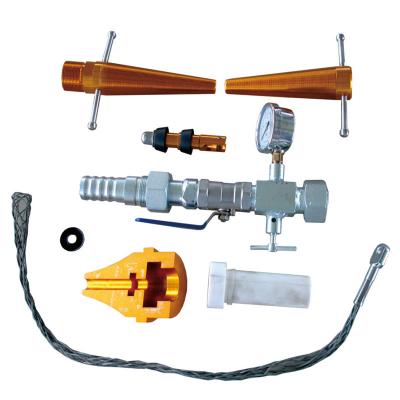

cable blower set ,hydraulic pump .a set sealing piece that specify the cable outside diameter and silicon core pipe by customer .a set model GDJ150 pipe sealing inspection equipment .
